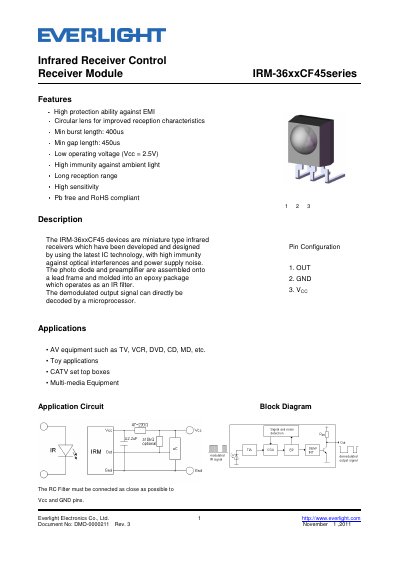

The Everlight IRM-36xxCF45 series infrared receiver module datasheet provides features, electrical specifications, and application information.
The IRM-36xxCF45 series infrared receiver module from Everlight offers high EMI protection, low operating voltage (2.5 V), high immunity to ambient light, and a long reception range. It is suited for AV equipment, toys, set‑top boxes, and other multimedia applications.
The document lists absolute maximum ratings, electro‑optical characteristics, test methods, supported protocols, and packaging details. Key specifications include a supply voltage of 2.5‑5.5 V, operating temperature from –25 °C to +85 °C, and a reception range of up to 14 m.
| Supply Voltage (VCC) | 2.5 V – 5.5 V |
|---|---|
| Operating Temperature | -25 °C to +85 °C |
| Storage Temperature | -40 °C to +85 °C |
| Current Consumption (Icc) | 1.0 mA – 1.3 mA |
| Peak Wavelength (λp) | 940 nm |
| Reception Range (L0) | 14 m |
| High Level Pulse Width (TH) | 450 µs – 750 µs |
| Low Level Pulse Width (TL) | 450 µs – 750 µs |
| Internal Pull‑up Resistor (RPU) | 40 kΩ – 60 kΩ |
The module operates with a supply voltage between 2.5 V and 5.5 V.
The minimum burst length is 400 µs.
The RC filter should be placed as close as possible to the VCC and GND pins.
