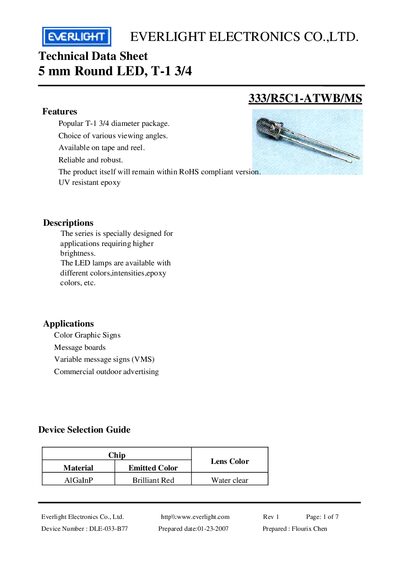

Technical data sheet for Everlight 5 mm round LED, model T-1 3/4 333/R5C1‑ATWB/MS, with specifications and packaging details.
This datasheet provides the key specifications for Everlight's 5 mm round LED in the T‑1 3/4 package, including electrical ratings, optical performance, and mechanical dimensions. It also lists recommended soldering conditions and packaging information.
The document includes absolute maximum ratings, typical electro‑optical characteristics such as forward voltage, luminous intensity, viewing angle, and wavelength data, as well as rank tables and characteristic curves for design reference.
| Forward Current (IF) max | 50 mA |
|---|---|
| Pulse Forward Current (IFP) max | 160 mA |
| Operating Temperature | -40 °C to +85 °C |
| Storage Temperature | -40 °C to +100 °C |
| Forward Voltage (typical at 20 mA) | 2.0 V |
| Luminous Intensity (typical at 20 mA) | 11 250 mcd |
| Viewing Angle | 15° |
| Peak Wavelength | 632 nm |
| Dominant Wavelength (typical) | 624 nm |
| Reverse Voltage | 5 V |
| Power Dissipation | 115 mW |
The maximum forward current is 50 mA.
The typical forward voltage at 20 mA is 2.0 V.
It operates from –40 °C to +85 °C.
Typical luminous intensity is 11 250 mcd (range 7 150–18 000 mcd).
