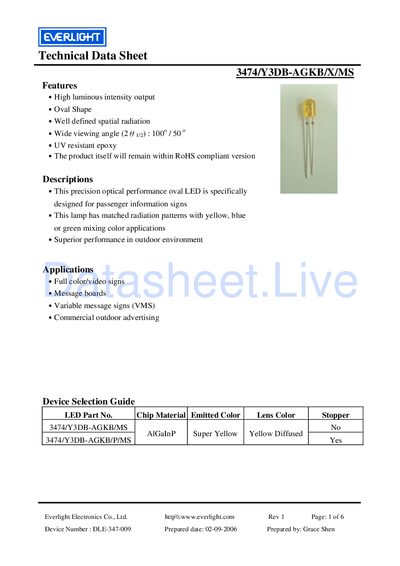

Technical data sheet for Everlight DLE-347-009 oval LED, covering dimensions, ratings and electro‑optical specs.
The Everlight DLE-347-009 is an oval‑shaped LED designed for passenger information signs, full‑color video signs, message boards and variable message signs. It offers high luminous intensity, a wide viewing angle of 100° / 50°, UV‑resistant epoxy and RoHS compliance.
The sheet lists package dimensions, absolute maximum ratings, electro‑optical characteristics, packing details and recommended soldering conditions. It also includes typical characteristic curves and notes on material changes and handling precautions.
| Forward Current (IF) | 50 mA |
|---|---|
| Viewing Angle (2θ1/2) | 100° / 50° |
| Power Dissipation | 120 mW |
| Reverse Voltage (VR) | 5 V |
| Peak Wavelength | 591 nm |
| Dominant Wavelength | 589 nm |
The maximum forward current is 50 mA.
The LED has a viewing angle of 100° horizontally and 50° vertically (2θ1/2).
