Everlight ITR8307/S18/TR8 Photoelectric Switch Datasheet
This document is a technical datasheet for the Everlight ITR8307/S18/TR8, an opto interrupter designed as a light reflection switch. It features a GaAs IR-LED transmitter and a NPN photo-transistor receiver, operating in the infrared range for short-distance applications.
Read onlineEverlight TR8 specifications
| Peak Wavelength | 940 nm |
|---|---|
| Operating Temperature | -25~+85 ℃ |
| Input Power Dissipation | 75 mW |
| Collector-Emitter Voltage | 30 V |
| Rise time | 20 μ sec |
Source: Everlight ITR8307/S18/TR8 Photoelectric Switch Datasheet
All Everlight TR8 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
- Everlight ITR8307/S18/TR8 Photoelectric Switch Datasheet 10 p
- Everlight 17-21SYGC/S530-XX/TR8 Chip LED Datasheet 9 p
- Everlight 12-215SURC/S530-XX/TR8 SMD Tape Type Chip LED Technical Data Sheet 7 p

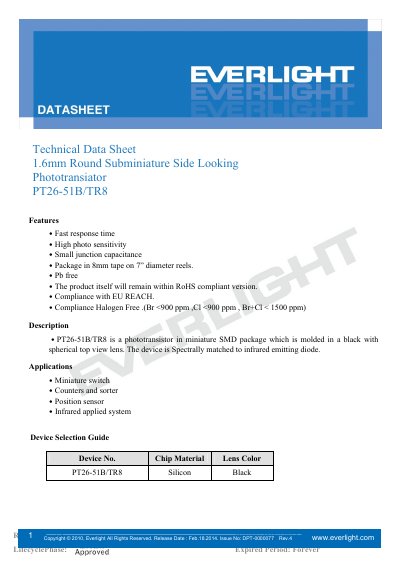

- Everlight PT26-51B/TR8 1.6mm Round Subminiature Side Looking Phototransistor Technical Data Sheet 9 p
- Everlight Mini-Top Infrared LEDs HIR67-21C/L289/TR8 Technical Data Sheet 9 p
- Everlight PD15-22B/TR8 Silicon PIN Photodiode Datasheet 9 p
Questions answered in these manuals
What are the applications for this device?
The device is suitable for use in cameras, VCRs, floppy disk drivers, cassette type recorders, and various microcomputer control equipment.
From: Everlight ITR8307/S18/TR8 Photoelectric Switch Datasheet
What is the recommended shelf life in a sealed bag?
The shelf life is 12 months when stored at less than 40 °C and less than 90% relative humidity.
From: Everlight ITR8307/S18/TR8 Photoelectric Switch Datasheet
What is the recommended reflow soldering temperature?
The recommended reflow soldering temperature is 260 ℃ for 10 seconds.
How many times can the LEDs be reflow soldered?
Reflow soldering should not be done more than two times.
What color does the Everlight 12-215SURC/S530-XX/TR8 LED emit?
It emits hyper red color and has a water clear lens.
From: Everlight 12-215SURC/S530-XX/TR8 SMD Tape Type Chip LED Technical Data Sheet
How many LEDs are supplied per reel?
Each reel contains 3000 pieces.
From: Everlight 12-215SURC/S530-XX/TR8 SMD Tape Type Chip LED Technical Data Sheet
