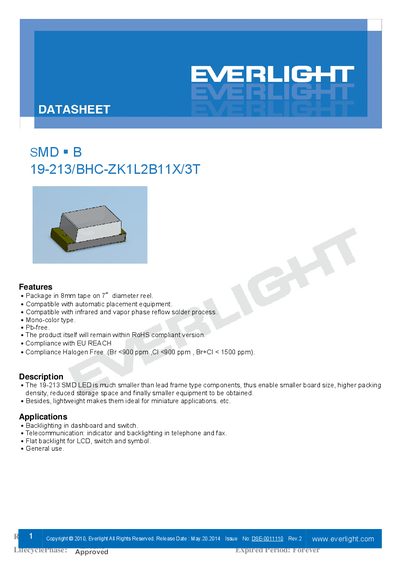

Datasheet for Everlight B 19-213/BHC‑ZK1L2B11X/3T SMD LED, detailing specifications, dimensions, ratings, and usage precautions.
The Everlight B 19-213/BHC‑ZK1L2B11X/3T is a mono‑color SMD LED designed for compact, high‑density applications such as dashboard backlighting, telecommunication indicators, and flat LCD backlights. It complies with RoHS and EU REACH standards and is compatible with automatic placement and infrared or vapor‑phase reflow soldering processes.
Key electrical characteristics include a typical forward voltage of 2.60‑2.90 V, luminous intensity ranging from 7.20 to 18.00 mcd, and a peak wavelength of 468 nm. The device operates from –40 °C to +85 °C and requires careful handling during soldering and storage to maintain performance.
| Forward Voltage (typical) | 2.60‑2.90 V |
|---|---|
| Luminous Intensity (typical) | 7.20‑18.00 mcd |
| Peak Wavelength | 468 nm |
| Reverse Voltage | 5 V |
| Operating Temperature | -40 °C to +85 °C |
| Reflow Soldering Temperature | 260 °C for 10 sec |
The recommended reflow soldering profile is 260 °C for 10 seconds.
After opening, keep the LEDs at 30 °C or less and 60 % RH or less, and use them within 168 hours (7 days).
High‑reliability applications such as military/aerospace, automotive safety/security systems, and medical equipment may require a different product; contact Everlight for guidance.
