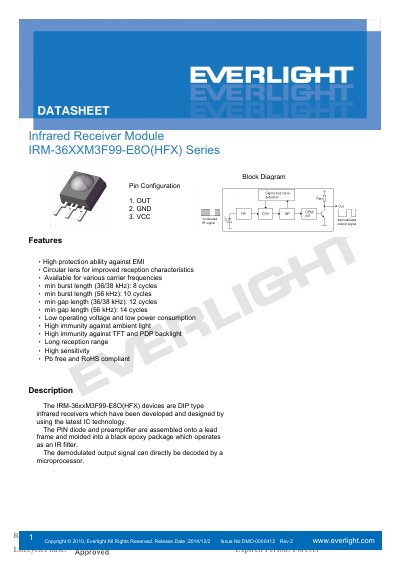

Datasheet for Everlight IRM-36XXM3F99-E8O(HFX) Series infrared receiver modules, detailing features, specifications, and application circuits.
The IRM-36XXM3F99-E8O(HFX) Series are DIP‑type infrared receiver modules with high EMI protection, low operating voltage, and high sensitivity. They include a PIN diode and preamplifier in a black epoxy package that acts as an IR filter, providing a demodulated output suitable for direct microprocessor decoding.
These modules are intended for AV equipment, set‑top boxes, multimedia devices, and other products using IR remote control. The datasheet provides electrical ratings, electro‑optical characteristics, application circuits, and protocol compatibility information.
| Supply Voltage (max) | 6 V |
|---|---|
| Operating Temperature | -20 °C ~ +80 °C |
| Storage Temperature | -40 °C ~ +85 °C |
| Soldering Temperature | 260 °C (max, <5 s) |
| Supply Voltage Range | 2.7 V – 5.5 V |
| Current Consumption (typ.) | 0.4 mA |
| Peak Wavelength | 940 nm |
| Reception Range (L0) | 14 m |
| High Level Pulse Width (TH) | 450 µs – 750 µs |
| Low Level Pulse Width (TL) | 450 µs – 750 µs |
| High Level Output Voltage (VOH) | VCC‑0.4 V |
| Low Level Output Voltage (VOL) | 0.2 V – 0.5 V |
| Internal Pull‑up Resistor (RPU) | 34 kΩ – 46 kΩ |
The modules operate from 2.7 V to 5.5 V supply voltage.
Typical current consumption is 0.4 mA (up to 0.6 mA max).
The detector’s peak wavelength is 940 nm.
Solder at up to 260 °C for less than 5 seconds, keeping the tip at least 4 mm from the mold body.
