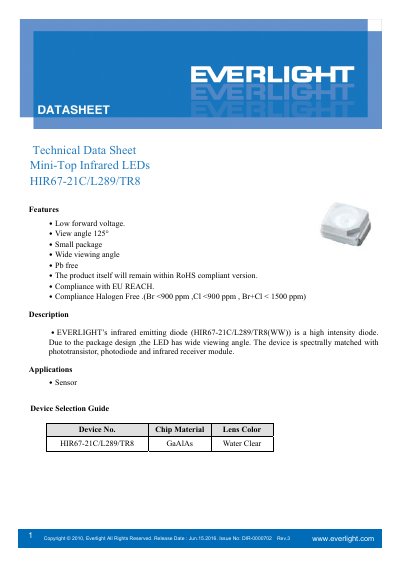

This document describes the features and characteristics of Everlight's Mini-Top Infrared LED HIR67-21C/L289/TR8, including low forward voltage, 125° viewing angle, small package, wide viewing angle, Pb free, compliance with RoHS and EU REACH standards.
This document is a technical datasheet for the Everlight Mini-Top Infrared LED series, specifically models HIR67-21C, L289, and TR8. The device is described as a high-intensity infrared emitting diode with a wide viewing angle of approximately 125 degrees, designed to be spectrally matched with phototransistors and other infrared receiver modules.
| Continuous Forward Current (I F) | 65 mA |
|---|---|
| Reverse Voltage (V R) | 5 V |
| Operating Temperature (T opr) | -40 ~ +85 ℃ |
| Peak Wavelength (λp) | 850 nm |
| View Angle (2θ) | 120 deg |
The typical peak wavelength is 850 nm.
Yes, the document states it is Pb free and remains within RoHS compliant version.
LEDs should be kept at 30 ℃ or less and 90%RH or less.
