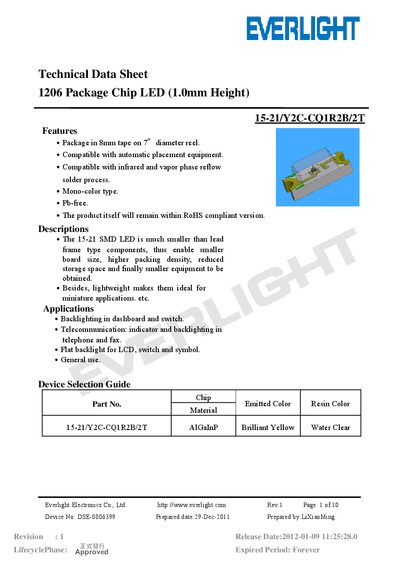

Technical data sheet for Everlight 15-21/Y2C-CQ1R2B/2T 1.0 mm height SMD LED, covering dimensions, electrical and optical specs, and handling guidelines.
The Everlight 15-21/Y2C-CQ1R2B/2T is a 1.0 mm height SMD chip LED offered in a 1206 package. It is a mono‑color, Pb‑free, RoHS‑compliant device supplied on 8 mm tape and compatible with automatic placement and infrared or vapor‑phase reflow soldering.
The datasheet provides detailed package dimensions, absolute maximum ratings, electro‑optical characteristics such as luminous intensity, forward voltage and wavelength, as well as reliability test conditions and usage precautions for storage, soldering and repair.
| Package | 1206 Chip LED (1.0 mm Height) |
|---|---|
| Luminous Intensity | 72 – 180 mcd |
| Forward Voltage | 1.75 – 2.35 V |
| Forward Current | 25 mA |
| Operating Temperature | -40 °C ~ +85 °C |
| Storage Temperature | -40 °C ~ +90 °C |
| Peak Wavelength | 591 nm |
| Dominant Wavelength | 585.5 – 591.5 nm |
The absolute maximum forward current is 25 mA.
The package outline dimensions are 1.4 mm × 0.8 mm (typical) with tolerances of ±0.1 mm.
