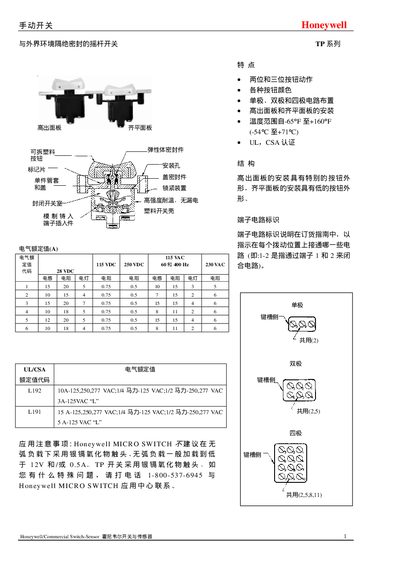

The Honeywell TP series micro switches are offered in single‑pole, double‑pole and four‑pole configurations with high‑profile and low‑profile mounting options. The guide provides details on terminal connections, wiring diagrams, and the temperature rating of –6 °C to +160 °F.
Installation dimensions, mounting hole patterns, and screw specifications (6‑32 UNC‑28) are listed for each panel type, along with UL/CSA certification information and rated voltage/current values for proper wiring. This manual is written in Chinese.
| Rated voltage (AC) | 115 VAC |
|---|---|
| Rated voltage (DC) | 115 VDC / 250 VDC |
| Current rating (L192) | 10 A @ 125/250/277 VAC |
| Current rating (L191) | 15 A @ 125/230/277 VAC |
| Temperature range | -6 °C to +160 °F |
| Mounting screw size | 6‑32 UNC‑28 |
The switches operate from –6 °C up to +160 °F.
L192 is rated for 10 A at 125 VAC, 250 VAC, and 277 VAC.
The panels use a 6‑32 UNC‑28 screw.
