SS400 series switch type Hall position sensor is a 3.8-30VDC powered digital current sink output product with a square Hall design, magnetic characteristic temperature compensation, and action/release points symmetrical to zero Gauss, which is suitable for industrial automation and instrumentation.
The SS400 series switch Hall position sensor from Honeywell is designed for reliable magnetic field detection with temperature compensation and high output current capability. It operates from 3.8 VDC to 30 VDC and can continuously source 20 mA, with a maximum absolute output current of 50 mA.

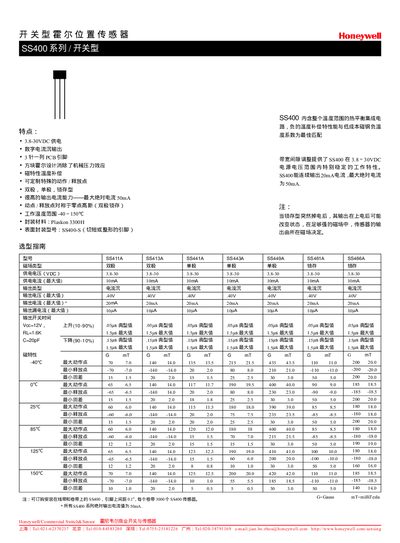

The datasheet includes detailed electrical parameters, selection guidelines, and mechanical mounting dimensions for various tape styles (T2, T3). It also lists the available sensor variants (dual‑polar, single‑polar, latch) and their corresponding actuation and release points. This manual is written in Chinese.
| Supply voltage | 3.8‑30 VDC |
|---|---|
| Maximum output current | 50 mA |
| Continuous output current | 20 mA |
| Operating temperature range | -40 °C to 150 °C |
| Package material | Plaskon 3300H |
| Output type | Digital current sink |
| Pin configuration | 3‑pin single‑row PCB |
It operates from 3.8 VDC to 30 VDC.
The sensor can source up to 50 mA absolute output current.
It works from –40 °C to 150 °C.
It uses a 3‑pin single‑row PCB footprint.
