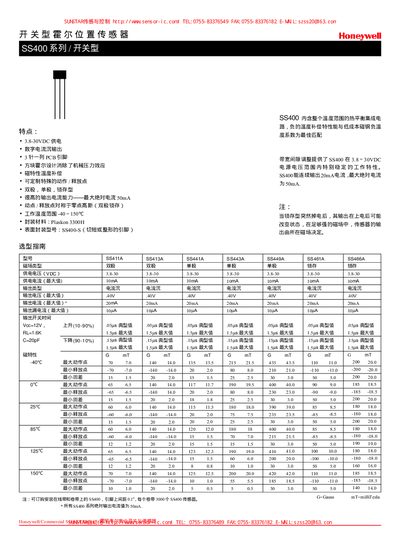

This manual describes the Honeywell SS400 series switch Hall position sensor, a Hall‑effect device with a square‑Hall design that eliminates mechanical pressure effects. It includes temperature‑compensated magnetic characteristics, customizable actuation/release points, and high output‑current capability.
The document contains selection guides, electrical specifications, pin configurations, installation dimensions, and packaging information for the various SS400 variants (SS411A, SS413A, SS441A, etc.). This manual is written in Chinese.
| Supply voltage | 3.8‑30 VDC |
|---|---|
| Continuous output current | 20 mA |
| Maximum absolute output current | 50 mA |
| Operating temperature range | -40 °C to 150 °C |
| Package material | Plaskon 3300H |
The sensor operates from 3.8 VDC to 30 VDC.
The SS400 can continuously output 20 mA.
It works from –40 °C up to 150 °C.
The maximum absolute output current is 50 mA.
