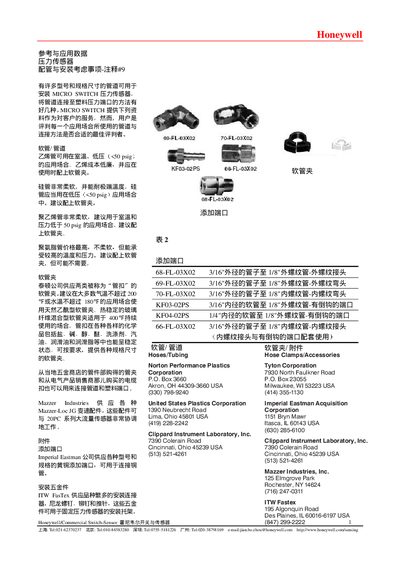

This document is a manual of Honeywell pressure sensor's piping and installation considerations, which introduces the specifications of hoses, tubes, hose clamps, accessories, etc.
The document offers reference and application data for Honeywell pressure sensors, focusing on piping and installation considerations. It lists suitable tubing materials, hose clamp types, and recommended accessories for various operating conditions.
Recommended tubing includes vinyl, silicone, and polyethylene for low‑pressure (< 50 psig) applications, each to be secured with appropriate hose clamps. Tyton Corporation supplies standard and high‑temperature hose clamps, while Imperial Eastman provides brass add‑on ports and other hardware. Part numbers for fittings and accessories are also included. This manual is written in Chinese.
| Maximum recommended pressure for polyethylene tubing | <50 psig |
|---|---|
| Maximum recommended pressure for silicone tubing | <50 psig |
| Maximum temperature for standard (natural acetate) hose clamp | 200 °F gas / 180 °F water |
| Maximum temperature for glass‑fiber mixed hose clamp | 400 °F continuous use |
Use the natural acetate hose clamp for applications where the gas temperature is ≤ 200 °F (or water temperature ≤ 180 °F).
Brass add‑on ports are supplied by Imperial Eastman Company.
