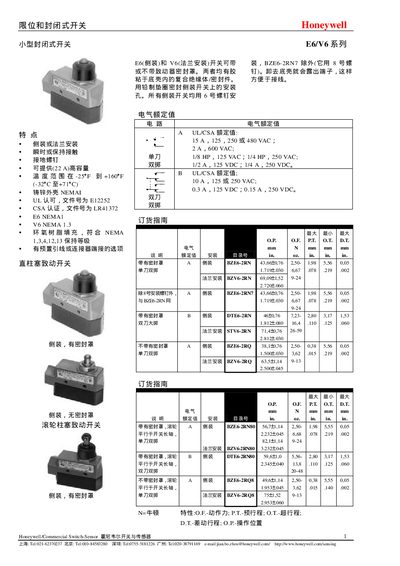

Honeywell E6/V6 Series Miniature Switches Datasheet

The Honeywell E6/V6 Series miniature switches datasheet provides electrical ratings, mechanical dimensions, and application notes.

Brand: Honeywell
Category: switch
Document type: Datasheet
Language: English
Pages: 6
File format: PDF
File size: 624 KB
Published: 02 October, 2011
Updated: 30 September, 2026
MD5 checksum: 3678787F0D13A94B7A12EB80375C84EC
PDF: Honeywell E6/V6 Series Miniature Switches Datasheet PDF

About this manual

This document presents the technical data for Honeywell's E6/V6 series miniature switches. It includes electrical ratings, mechanical dimensions, mounting information, and environmental limits for the various switch configurations.

Key information such as UL/CSA ratings, NEMA configurations, and detailed dimensional tables are listed, allowing designers to select the appropriate switch for their application and verify compliance with safety standards.

What's inside

Electrical Ratings
Mechanical Dimensions
Operating Characteristics
Mounting and Wiring
Environmental Conditions
NEMA Ratings

Specifications

Maximum Switching Current (DC)	0.5 A
Maximum Switching Voltage (DC)	125 V
Overall Height (O.F.)	2.78 – 8.35 mm
NEMA Configurations	1, 3, 4, 12, 13

Frequently asked questions

Which NEMA enclosure types are available for the E6/V6 series?

The series is available in NEMA 1, 3, 4, 12, and 13 configurations.

What is the overall height range of the switches?

The overall height (O.F.) ranges from 2.78 mm to 8.35 mm depending on the model.

What are the environmental temperature limits?

The switches operate from –25 °F (–32 °C) up to +160 °F (+71 °C).
