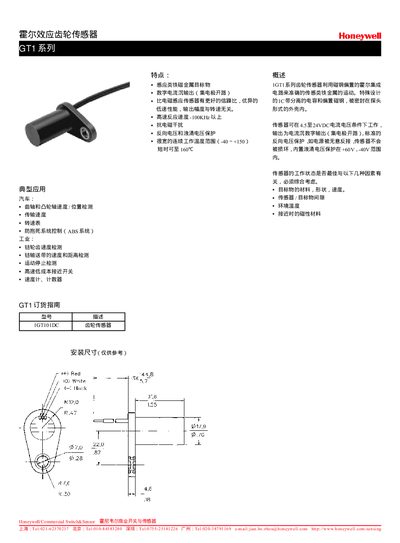

The GT1 series Hall effect gear sensors have digital sinking output (open collector), better signal-to-noise ratio than electromagnetic induction sensors, excellent low-speed performance, output amplitude is independent of speed. It has a high response speed of -100KHz or more, anti-electromagnetic interference, reverse voltage and surge voltage protection, a wide continuous working temperature range (-40 ~ +150), and can reach 160 ℃ for a short time.
The GT1 series gear sensor uses a Hall‑effect integrated circuit with a biased magnet to detect the motion of ferromagnetic targets. It operates from 4.5 V to 24 VDC and provides a digital current‑sinking output with built‑in reverse‑voltage and surge protection.
Typical applications include crankshaft and camshaft speed/position detection, transmission speed monitoring, tachometers, ABS control in automotive systems, as well as chain‑wheel speed detection, conveyor monitoring, and high‑speed proximity switching in industrial equipment. This manual is written in Chinese.
| Supply voltage | 4.5 V to 24 VDC |
|---|---|
| Supply current (typical) | 10 mA |
| Supply current (maximum) | 20 mA |
| Output low‑level voltage | 0.4 V (max) |
| Output high‑level leakage current | 10 µA (max) |
| Rise switching time | 15 µs (max) |
| Fall switching time | 1.0 µs (max) |
| Continuous temperature range | -40 °C to +150 °C |
| Sinking current | 40 mA |
The sensor works with a supply voltage from 4.5 V to 24 VDC.
The maximum output low‑level voltage is 0.4 V.
It can operate continuously from –40 °C up to +150 °C.
Typical automotive uses include crankshaft and camshaft speed/position detection, transmission speed monitoring, tachometers, and ABS control.
