This is a document about a Philips 20-inch LCD TV, which features Digital Crystal Clear technology for high-quality images and sound effects. It also has Incredible Surround technology for excellent audio performance. The TV has a sleek and modern design that blends well with any interior decor.

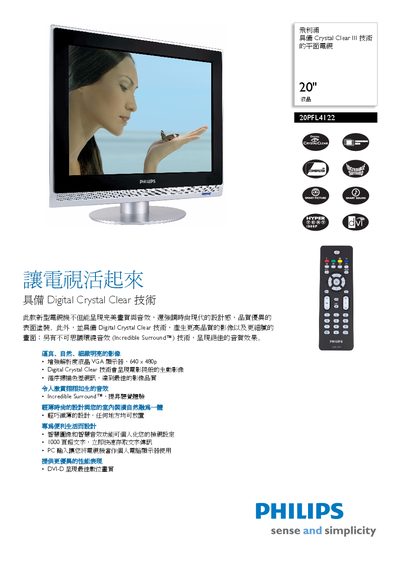

The Philips 20PFL4122 is a 20‑inch LCD television that incorporates Digital Crystal Clear technology, Incredible Surround sound, and a slim design suitable for any room. It offers enhanced picture quality with a 640 × 480p resolution, anti‑glare screen, and various picture‑enhancement functions.
This manual covers the TV’s technical specifications, power requirements, connection options (AV, YPbPr, VGA, etc.), installation steps, safety features such as child lock, and how to use built‑in functions like automatic volume control and picture calibration. This manual is written in Chinese.
| Brightness | 400 cd/m² |
|---|---|
| Response time | 8 ms |
| Viewing angle (H/V) | 170° / 70° |
| Panel resolution | 640 × 480 p |
| Audio output power | 2 × 3 W RMS |
| Power consumption | 70 W |
| Input voltage | 100‑240 V, 50‑60 Hz |
| Dimensions (W×H×D) | 497 × 428 × 80 mm |
| VESA mount pattern | 100 × 100 mm |
Yes, the TV includes a child protection function that can be enabled to restrict access.
The TV consumes approximately 70 W during normal operation.
