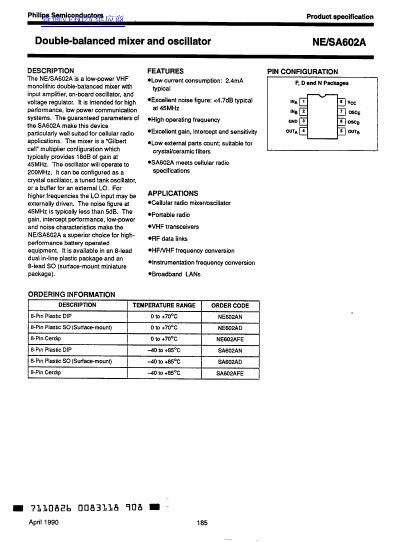

Philips NE/SA602A Double-Balanced Mixer and Oscillator Datasheet

Brand: Philips
Category: Other Electronics
Document type: Datasheet
Language: English
Pages: 8
File format: PDF
File size: 382 KB
Published: 09 August, 2012
Updated: 14 August, 2012
MD5 checksum: A2A3AAE6842387220A4DE3F2BEA4FE1D
PDF: Philips NE/SA602A Double-Balanced Mixer and Oscillator Datasheet PDF

About this manual

The Philips NE/SA602A is a low-power VHF monolithic double-balanced mixer with an input amplifier, on-board oscillator, and voltage regulator. It is designed for high-performance, low-power communication systems, particularly cellular radio applications. The device utilizes a 2 "Gilbert cell" multiplier configuration providing 18dB of gain at 45MHz and operates up to 200MHz.

What's inside

Description
Ordering Information
Features
Applications
Absolute Maximum Ratings
AC/DC Electrical Characteristics
Description of Operation
Oscillator Circuits

Specifications

Noise figure at 45MHz	5.0 to 5.5 dB
Conversion gain at 45MHz	18 dB
Operating ambient temperature range	-40 to +70 °C

Frequently asked questions

What is the typical current consumption of the NE/SA602A?

The typical current consumption is 2.4mA.

What is the maximum operating frequency of the on-board oscillator?

The oscillator will operate up to 200MHz.

Is the NE/SA602A suitable for cellular radio applications?

Yes, it is particularly well suited for cellular radio applications.
