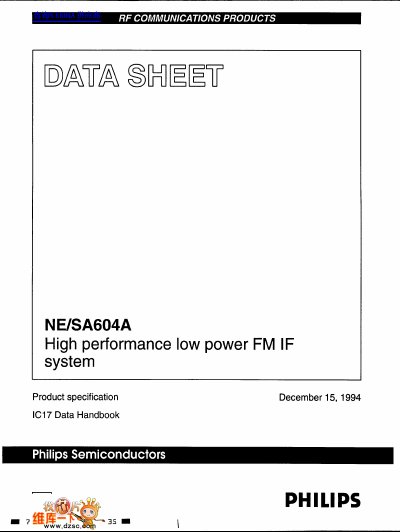

The Philips NE/SA604A is an improved monolithic low-power FM IF system designed for high-performance applications such as cellular radio and communications receivers. It incorporates two limiting intermediate frequency amplifiers, a quadrature detector, muting, a logarithmic received signal strength indicator (RSSI), and a voltage regulator. The device offers a higher IF bandwidth of 25MHz and temperature-compensated RSSI compared to the NE/SA604.
| DC current drain | 3.3mA typical |
|---|---|
| IF bandwidth | 25MHz |
| RSSI dynamic range | excess of 90dB |
| Excellent sensitivity | 1.54 across input pins |
| Operating ambient temperature (SA604A) | -40 to +85 °C |
| Signal-to-noise ratio | 73 dB |
It is suitable for cellular radio FM IF, high performance communications receivers, intermediate frequency amplification and detection up to 25MHz, RF level meters, spectrum analyzers, instrumentation, and FSK and ASK data receivers.
The device has a low power consumption of 3.3mA typical.
