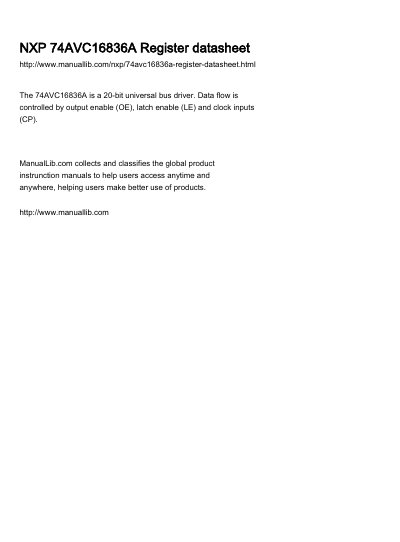

The 74AVC16836A is a 20-bit universal bus driver. Data flow is controlled by output enable (OE), latch enable (LE) and clock inputs (CP).
The document describes the 74AVC16836A, a 20-bit registered driver featuring an inverted register enable and Dynamic Controlled Outputs™ (3-State). It is designed for high-speed applications with low power consumption and operates over a wide supply voltage range of 1.2 V to 3.6 V.
The datasheet provides detailed electrical characteristics, including propagation delays, input/output voltage levels, and timing parameters for various supply voltages. It also includes pin configuration descriptions, logic function tables, recommended operating conditions, and absolute maximum ratings.
| Number of bits | 20-bit |
|---|---|
| Supply voltage range (Low Voltage) | 1.65 V to 3.6 V |
| Supply voltage range (Low Voltage Applications) | 1.2 V to 3.6 V |
| Package types | TSSOP, TVSOP |
The Latch enable input (LE) is active LOW and controls when data from the inputs is latched to the outputs.
DCO stands for Dynamic Controlled Output, a circuit that dynamically changes output impedance to reduce noise.
