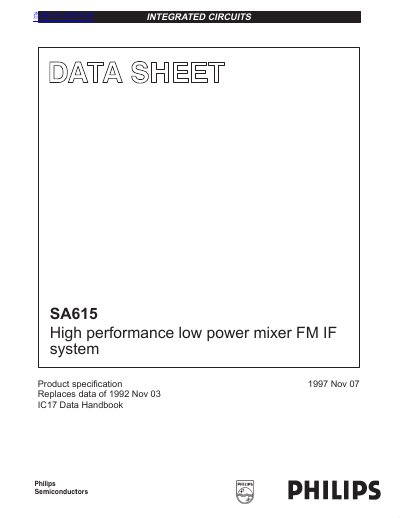

The SA615 is a monolithic low-power FM IF system that incorporates a mixer/oscillator, two limiting intermediate frequency amplifiers, a quadrature detector, muting, a logarithmic received signal strength indicator (RSSI), and a voltage regulator. It is designed for high-performance applications such as cellular radio FM IF, high-performance communications receivers, and single conversion VHF/UHF receivers.
| Operating ambient temperature range | -40 to +85 °C |
|---|---|
| Mixer input signal frequency | 500 MHz |
| Crystal oscillator frequency | 150 MHz |
| Noise figure at 45MHz | 5.0 dB |
| Conversion power gain | 8.0 to 13 dB |
| IF amp gain | 39.7 dB |
| Limiter gain | 62.5 dB |
| AM rejection | 25 to 43 dB |
| SINAD sensitivity | 12 dB |
| RSSI dynamic range | 80 dB |
The SA615 is available in 20-lead dual-in-line plastic, 20-lead SOL (surface-mounted miniature package), and 20-lead SSOP (shrink small outline package).
The typical power consumption is 5.7mA at a 6V supply voltage.
The mixer has a third-order input intercept point of -12 dBm.
Yes, the SA615 meets EIA specifications for AMPS and TACS cellular radio applications.
