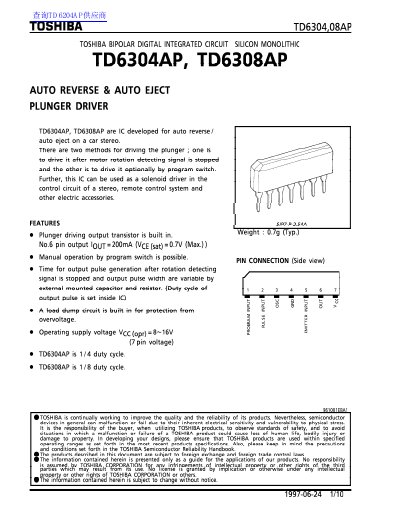

The Toshiba TD6304AP and TD6308AP are bipolar digital integrated circuits developed specifically for driving plungers in car stereo applications, such as auto reverse and auto eject functions. These ICs feature built-in output transistors and allow for manual operation via a program switch or automatic triggering upon the cessation of a rotation detecting signal.
The document provides detailed specifications, including maximum ratings, electrical characteristics, and oscillator frequency calculation formulas. It includes application circuit diagrams for both auto reverse and auto eject modes, along with cautionary notes regarding surge voltage protection and component selection.
| Supply Voltage | 8.0 ~ 16.0 V |
|---|---|
| Output Current | 200 mA |
| Package Type | SIP7-P-2.54A |
| Weight | 0.7g (Typ.) |
They are developed for auto reverse and auto eject on a car stereo.
