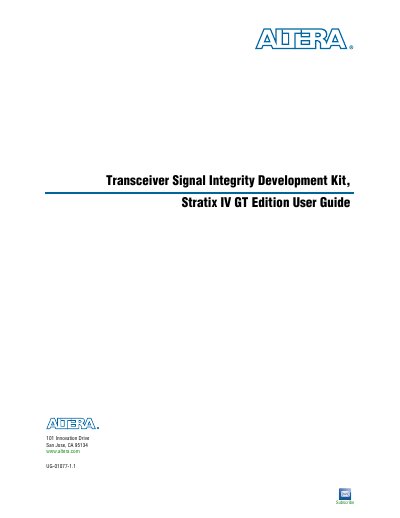

This user guide describes the Stratix IV GT Edition Transceiver Signal Integrity Development Kit (TSIDK) tool kit, which provides a simple and easy-to-use platform for evaluating the signal integrity performance of Stratix IV GT Edition devices.
The Transceiver Signal Integrity Development Kit, Stratix IV GT Edition, provides a full-featured FPGA development board and software tools for evaluating the signal integrity and interoperability of Stratix IV GT transceivers. The kit supports data rates up to 11.3 Gbps and allows users to verify compliance with major standards such as 10 Gigabit Ethernet, Interlaken, and IEEE 802.3ba 40G.
| Max Data Rate | 11.3 Gbps |
|---|---|
| FPGA Device | Stratix IV GT EP4S100G2 |
| Operating System | Windows XP or later |
The kit verifies compliance with 10 Gigabit Ethernet, Interlaken, 10G GPON/EPON, IEEE 802.3ba 40G, SONET OC-192, and other major standards.
Quartus II Subscription Edition software (versions 9.1, 9.1sp1, or 9.1sp2) is required.
