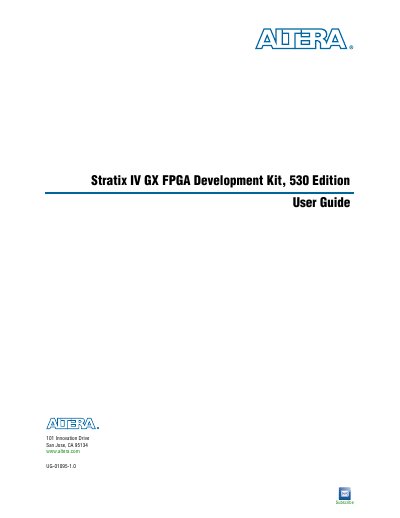

This user guide introduces Stratix IV GX FPGA development kit, including device features, software, hardware, development process and application examples
The Altera Stratix IV GX FPGA Development Kit, 530 Edition is a complete design environment that includes the Stratix IV GX EP4SGX530N FPGA development board and a one-year license for the Quartus II Subscription Edition software. The kit allows users to develop and test PCI Express 2.0 designs, memory subsystems using DDR3 and QDR II+ memories, and designs capable of migrating to HardCopy IV ASICs. It also supports modular design using high-speed mezzanine card (HSMC) connectors.
| FPGA Device | Stratix IV GX EP4SGX530N |
|---|---|
| Software License | Quartus II Subscription Edition (one year) |
| Supported Protocols | PCI Express 2.0, Serial RapidIO, 10 Gigabit Ethernet |
The kit includes the Stratix IV GX FPGA development board, an HSMC loopback board, an HSMC debug breakout board, power supplies, and cables.
The development kit edition (DKE) license for the Quartus II software is valid for a period of one year.
Yes, the kit allows you to develop and test PCI Express 2.0 designs.
