MCR218 is a bidirectional thyristor produced by Semiconductor Components Industries, LLC. It is mainly used for half-wave ac control applications such as motor controls, heating controls and power supplies, or wherever half-wave silicon gate-controlled, solid-state devices are needed.

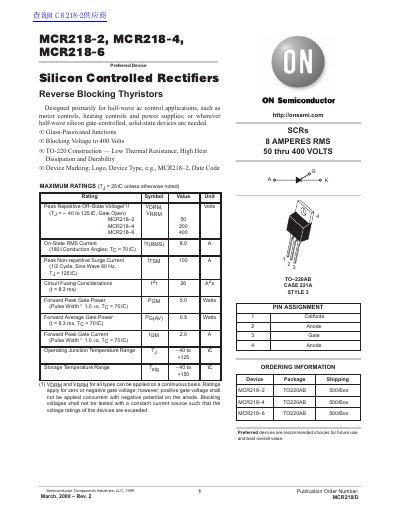

This document provides technical specifications for the MCR218-2, MCR218-4, and MCR218-6 silicon controlled rectifiers (SCRs). These preferred devices are designed primarily for half-wave AC control applications, such as motor controls, heating controls, and power supplies. They feature glass-passivated junctions and TO-220 construction for low thermal resistance and high durability.
| On-State RMS Current | 8.0 A |
|---|---|
| Peak Non-repetitive Surge Current | 100 A |
| Blocking Voltage | 50 thru 400 Volts |
| Operating Junction Temperature Range | -40 to +125 °C |
| Package Type | TO-220AB |
The MCR218-2 has a rating of 50V, the MCR218-4 is 200V, and the MCR218-6 is 400V.
The maximum lead temperature is 260 °C for 1/8” from the case for 10 seconds.
