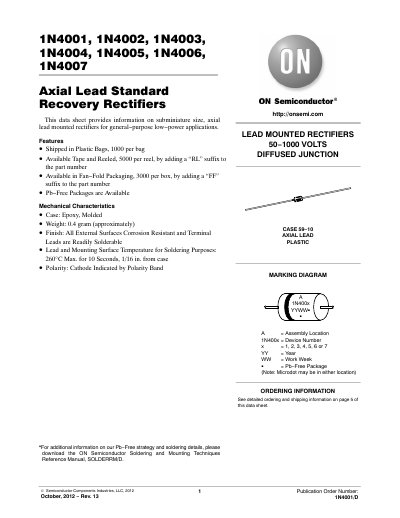

Datasheet for ON Semiconductor 1N4001‑1N4007 axial lead standard recovery rectifiers with ratings, dimensions and ordering info.
The ON Semiconductor 1N4001‑1N4007 series are sub‑miniature axial‑lead rectifiers intended for general‑purpose low‑power applications. The data sheet provides maximum voltage and current ratings, thermal characteristics, electrical parameters and mechanical dimensions.
Packaging options include plastic bags (1000 units), tape & reel (5000 units) and fan‑fold boxes (3000 units). Detailed ordering codes identify standard, Pb‑free and bulk packaging variants. The document also lists recommended soldering temperature and polarity marking.
| Average Forward Voltage Drop (VF(AV)) | 0.8 V |
|---|---|
| Junction‑to‑Ambient Thermal Resistance (RθJA) | 1 °C/W |
Lead and mounting surface temperature for soldering should not exceed 260 °C for 10 seconds, measured 1/16 in. from the case.
The case dimensions are A: 4.10‑5.20 mm (0.161‑0.205 in), B: 2.00‑2.70 mm (0.079‑0.106 in), D: 0.71‑0.86 mm (0.028‑0.034 in).
