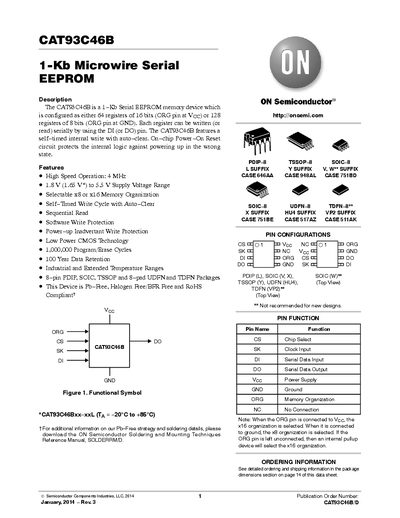

This datasheet details the CAT93C46B, a 1-Kb serial EEPROM with selectable x8 or x16 organization, high-speed operation up to 4 MHz, and industrial…
The CAT93C46B is a 1-Kb Microwire Serial EEPROM memory device that can be configured as either 64 registers of 16 bits or 128 registers of 8 bits. It features high-speed operation up to 4 MHz and operates with a wide voltage supply range from 1.65 V to 5.5 V.
| Memory Size | 1-Kb |
|---|---|
| Supply Voltage Range | 1.8 V to 5.5 V |
| Maximum Clock Frequency | 4 MHz |
| Program/Erase Cycles | 1,000,000 |
| Data Retention | 100 Years |
| Operating Temperature Range (Industrial) | -40°C to +85°C |
The organization is selected by connecting the ORG pin: V CC selects x16 (64 registers of 16 bits), and GND selects x8 (128 registers of 8 bits).
No, the CAT93C46B generates the required high voltage internally on a single power supply.
A high state on the DO pin indicates the device is ready for the next instruction, while low indicates it is busy.
