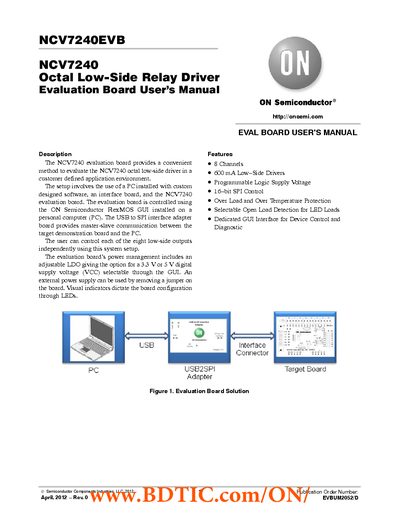

On Semiconductor NCV7240 Evaluation Board User's Manual

This manual describes the setup and operation of the NCV7240 Octal Low-Side Relay Driver Evaluation Board, including hardware configuration and GUI control.

Brand: ON Semiconductor
Category: Other Electronics
Document type: User Manual
Language: English
Pages: 11
File format: PDF
File size: 1.1 MB
Published: 12 October, 2026
Updated: 12 October, 2026
MD5 checksum: 944593B852423A73E8CE08903B931F5C
PDF: On Semiconductor NCV7240 Evaluation Board User's Manual PDF

About this manual

The document provides a user's manual for the NCV7240 Octal Low-Side Relay Driver Evaluation Board. It details the system requirements, which include a PC with the On Semiconductor FlexMOS GUI software, a USB to SPI interface adapter board, and the evaluation board itself. The setup allows users to control eight low-side outputs independently via 16-bit SPI communication.

What's inside

Description
Features
Absolute Maximum Ratings
Recommended Operating Conditions
Pin Function Description
Operational Guidelines
Typical Characteristics

Frequently asked questions

What is the maximum junction temperature for the NCV7240?

The maximum junction temperature for the NCV7240 is 150 °C.

What is the maximum DC output current for the evaluation board?

The maximum DC output current is 0.6 A.

What is the maximum current the USB voltage supply can provide?

The USB voltage supply provides a maximum of 100 mA.
