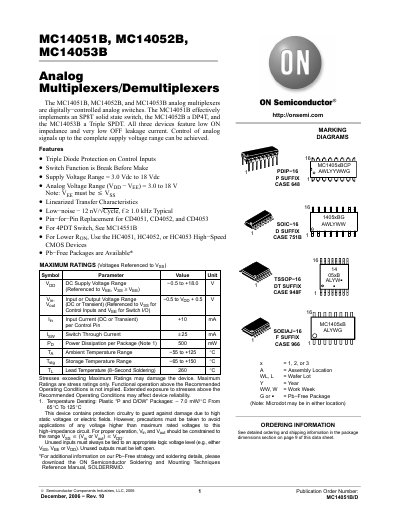

This datasheet details the features, electrical characteristics, pin assignments, and application information for the MC14051B, MC14052B, and MC14053B…
The MC14051B, MC14052B, and MC14053B are digitally-controlled analog switches designed to control analog signals up to the complete supply voltage range. The MC14051B implements an SP8T solid state switch, the MC14052B a DP4T, and the MC14053B a Triple SPDT. All three devices feature low ON impedance and very low OFF leakage current, with triple diode protection on control inputs and a break-before-make switch function.
| Supply Voltage Range | 3.0 Vdc to 18 Vdc |
|---|---|
| Analog Voltage Range | 3.0 to 18 V |
| Ambient Temperature Range | -55 to +125 °C |
| ON Resistance (MC14051B) | 800 Ω |
| ON Resistance (MC14052B) | 250 Ω |
| ON Resistance (MC14053B) | 1050 Ω |
| Off-Channel Leakage Current | ±1000 nA |
The switch function is Break Before Make.
Yes, Pb-Free packages are available for these devices.
