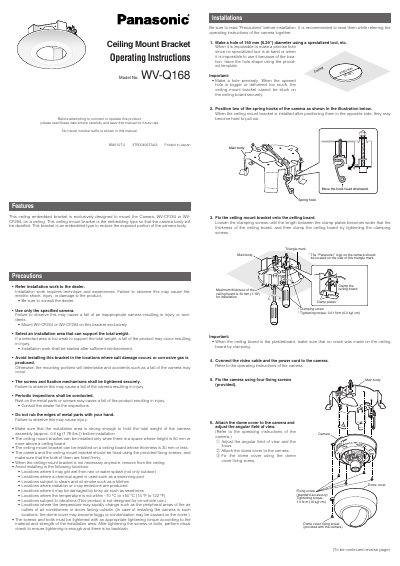

This is an operating instructions manual for a ceiling mount bracket, designed for WV-CF284 or WV-CF294 cameras. The bracket is an embedded type, reducing the exposed portion of the camera body.
This document provides operating instructions for the Panasonic WV-Q168 ceiling mount bracket, designed exclusively for mounting WV-CF284 or WV-CF294 cameras. It details critical precautions regarding installation locations, weight support, and environmental conditions to ensure safety and product integrity. The manual emphasizes consulting a dealer for installation work due to the technical requirements involved.
| Ambient temperature | -10°C to +50 °C |
|---|---|
| Dimensions | 9186 mm embedding depth of 60 mm |
| Weight | Approx. 280 g |
| Clamping screw torque | 0.61 N-m |
| Dome cover fixing screw torque | 1.6 N-m |
| Required ceiling height | 80 mm or more |
| Maximum ceiling board thickness | 30 mm |
This bracket is exclusively designed to mount the Camera WV-CF284 or WV-CF294.
The maximum thickness of the ceiling board for installation is 30 mm.
Auto focus adjustment is available by pushing the AF switch with the provided AF switch push tool.
