This is an operating manual for a ceiling mount bracket. It introduces the features of the bracket, installation precautions, etc.

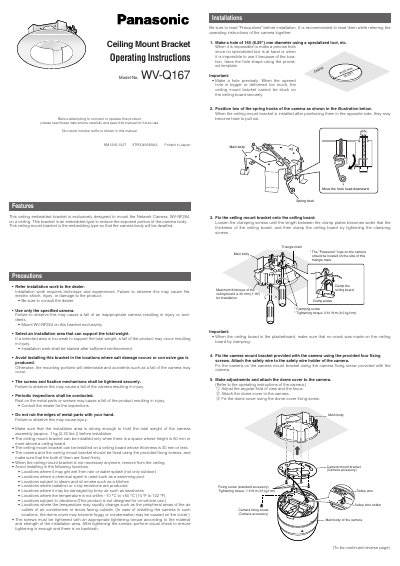

This document provides operating instructions for the Panasonic WV-Q167 ceiling mount bracket. It is designed exclusively to mount the Network Camera WV-NF284 on a ceiling in an embedded type configuration. The manual emphasizes that installation work must be performed by qualified dealers due to safety risks involving fire, electric shock, or injury if not done correctly.
| Ambient temperature | -10°C to +50 °C |
|---|---|
| Dimensions (embedding depth) | 65 mm |
| Weight | Approx. 285 g |
This ceiling mount bracket is exclusively designed to mount the Network Camera, WV-NF284.
The ceiling mount bracket can be installed on a ceiling board whose thickness is 30 mm or less.
The tightening torque for the clamping screws must be 0.61 N-m.
