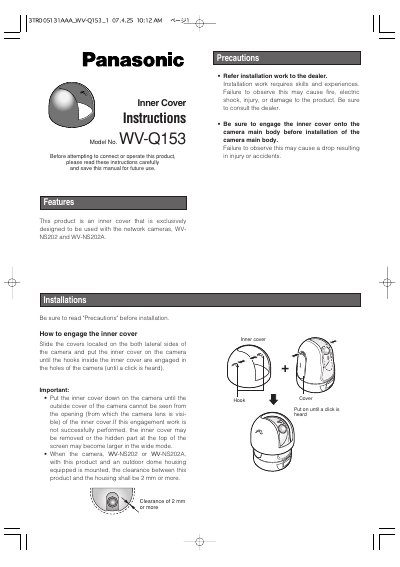

This is the Panasonic WV-Q153 inner cover instruction manual, which introduces the product features and usage methods of the inner cover
This document provides installation precautions and step-by-step instructions for engaging the Panasonic WV-Q153 inner cover onto compatible network cameras. It emphasizes safety measures to prevent injury or damage during installation and removal.
The manual includes specific guidance on ensuring proper engagement by checking that the outside cover is not visible through the opening, as well as clearance requirements when used with outdoor dome housings.
| Ambient temperature | -10 °C to +50 °C |
|---|---|
| Dimensions Diameter | 118 mm |
| Dimensions Height | 80.2 mm |
| Weight | approx. 50 g |
This product is exclusively designed to be used with the network cameras, WV-NS202 and WV-NS202A.
The diameter is 118 mm and the height is 80.2 mm.
The clearance between the inner cover and the housing shall be 2 mm or more.
