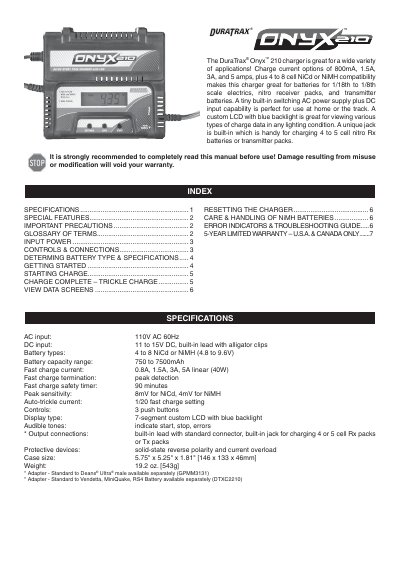

The DuraTrax Onyx 210 is a compact battery charger designed for 4 to 8 cell NiCd or NiMH batteries, compatible with 1/18th to 1/8th scale electrics and nitro models. It features selectable charge currents of 0.8A, 1.5A, 3A, and 5A, along with a custom peak detection system and a 7-segment LCD with blue backlight for easy data viewing.
| AC Input | 110V AC 60Hz |
|---|---|
| DC Input | 11 to 15V DC |
| Battery Types | 4 to 8 NiCd or NiMH |
| Battery Capacity Range | 750 to 7500mAh |
| Fast Charge Currents | 0.8A, 1.5A, 3A, 5A |
| Fast Charge Termination | Peak detection |
| Safety Timer | 90 minutes |
| Peak Sensitivity (NiCd) | 8mV |
| Peak Sensitivity (NiMH) | 4mV |
| Auto-trickle Current | 1/20 fast charge setting |
| Case Size | 5.75" x 5.25" x 1.81" |
| Weight | 19.2 oz. |
It supports 4 to 8 cell NiCd or NiMH batteries.
It uses a unique peak detection system for accurate termination.
Yes, it can be powered by a portable 12V DC power source.
