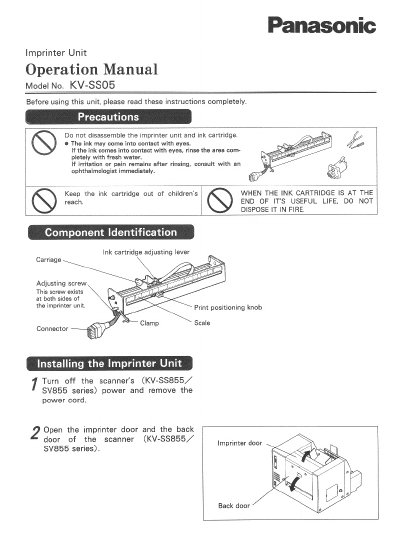

This document is the Operation Manual for the Panasonic KV-SSO5 Imprinter Unit. It details the installation process for the unit and ink cartridge onto compatible scanners (KV-SS855/SV855 series) and explains how to adjust the printing position. The manual also includes a troubleshooting guide for common issues such as printing failures or ink jams.
| Main printing direction resolution | 55.8 dpi (0.455 mm) |
|---|---|
| Sub-printing direction resolution | 95.1 dpi (0.267 mm) |
| Horizontal printing area | 215 mm (manual setting) |
| Nozzle number | 12 nozzles |
| Unit dimensions | 285 x 65 X 50mm (11.2 x 26 X 2.0 in) |
| Mass | 600 g (1.3 Ibs.) |
The maximum number of characters that can be printed out is 72.
Do not dispose of the ink cartridge in fire.
