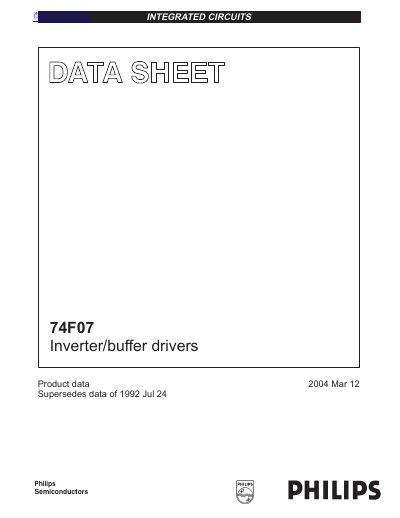

74F07 is a Philips Semiconductors hex inverter/buffer drivers (open-collector)
This document is a product data sheet for the Philips 74F07, which contains six independent inverter/buffer drivers with open-collector outputs. The device operates at high speeds with typical propagation delays of 2.5ns to 65ns depending on conditions and includes both small outline (SOT108-1) and dual in-line (SOT27-1) package options.
| Output Type | Open Collector |
|---|---|
| Supply Voltage Range | 0.5V to +7.0V |
| Operating Temperature Range | -65°C to +150°C (Storage) |
The absolute maximum rating for supply voltage is +7.0V.
The device contains six independent inverter/buffer drivers.
