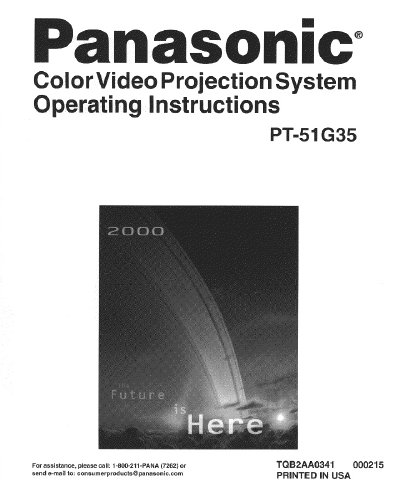

This manual provides operating instructions for the Panasonic PT-51G35 Color Video Projection System. It includes safety warnings, customer record information, and guidelines for care and cleaning of the projection screen and cabinet.
The document details installation procedures, including location requirements and optional cable connections for VCRs, cable boxes, and amplifiers. It also explains special features such as Picture In Picture (PIP), menu navigation, closed captioning, sleep timers, and picture adjustments.
| Power Source | 120V AC, 60Hz (2.7A) |
|---|---|
| Channel Capability | 181 VHF-12; UHF-56; Cable-125 |
| Video Input Jacks | 3 Video Input Jacks 1Vp-p, 75 Ohm, Phono Jack Type |
| Audio Input Jacks | 6 Audio Input Jacks 500mV RMS 47K Ohm |
| S-Video Input | S-Video (Y-C) Connector |
Occasional dusting with a feather duster or very soft brush using only up and down motions is recommended. Never rub across the screen in side to side motion.
Do not use abrasive cleaners, window or glass cleaner, laundry detergent, automatic dishwasher soap, alcohol, ammonia, or petroleum based products.
To move the set, push from the left side. The casters on the right side do not pivot in all directions, and pushing from the right side may cause the set to tip over.
