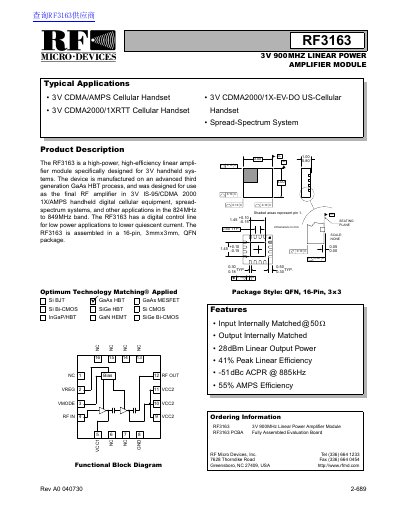

RF Micro Devices RF3163 900MHz Linear Power Amplifier Module Datasheet

The RF3163 is a high-power, high-efficiency linear amplifier module specifically designed for 3V handheld sys- tems.

Brand: RF Micro Devices
Category: Other Electronics
Document type: Datasheet
Language: English
Pages: 9
File format: PDF
File size: 79 KB
Published: 06 August, 2012
Updated: 30 September, 2023
Model: RF3163
MD5 checksum: CE1F0900772374E94D505E9214895B7A
PDF: RF Micro Devices RF3163 900MHz Linear Power Amplifier Module Datasheet PDF

About this manual

The RF3163 is a high-power, high-efficiency linear amplifier module manufactured on an advanced third-generation GaAs HBT process. It is specifically designed for use as the final RF amplifier in 3V IS-95/CDMA 2000 1X/AMPS handheld digital cellular equipment and spread-spectrum systems within the 824MHz to 849MHz band.

What's inside

Product Description
Features
Ordering Information
Absolute Maximum Ratings
Specifications (High Power Mode)
Specifications (Low Power Mode)
Pin Function Description
Evaluation Board Schematic
ESD Sensitivity
PCB Design Requirements

Specifications

Operating Frequency Range	824 to 849 MHz
Maximum Linear Output Power (High Power Mode)	28 dBm
Peak Linear Efficiency	41%
ACPR @ 885kHz (High Power Mode)	-51 dBc
AMPS Efficiency	55%
Package Type	16-pin, 3mmx3mm QFN
Supply Voltage (High Power Mode)	3.2 to 4.2 V

Frequently asked questions

What is the operating frequency range of the RF3163?

The device operates in the 824MHz to 849MHz band.

What is the maximum linear output power in high power mode?

The module provides a maximum linear output power of 28 dBm.

Is the RF3163 compatible with AMPS systems?

Yes, it is designed for use in 3V IS-95/CDMA 2000 1X/AMPS handheld digital cellular equipment.
