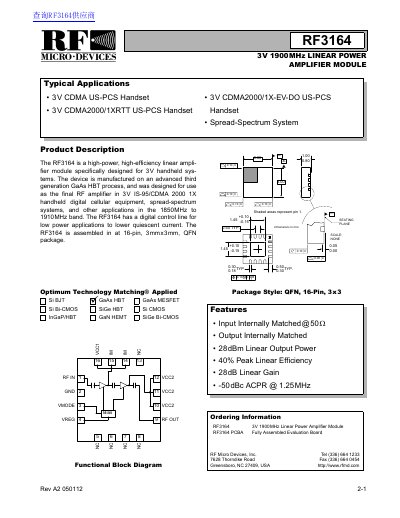

The RF3164 3V 1900MHz Linear Power Amplifier Module is a high-power, high-efficiency linear amplifier module specifically designed for 3V handheld systems. The device is manufactured on an advanced third generation GaAs HBT process, and was designed for use as the final RF amplifier in 3V IS-95/CDMA 2000 1X handheld digital cellular equipment, spread-spectrum systems, and other applications in the 1850MHz to 1910MHz band. The RF3164 has a digital control line for low power applications to lower quiescent current. The RF3164 is assembled in at 16-pin, 3mmx3mm, QFN package.
The RF3164 is a high-power, high-efficiency linear amplifier module manufactured on an advanced third-generation GaAs HBT process. It is specifically designed for use as the final RF amplifier in 3V IS-95/CDMA 2000 1X handheld digital cellular equipment and spread-spectrum systems operating within the 1850MHz to 1910MHz band.
The device features a digital control line for low power applications to lower quiescent current and is assembled in a 16-pin, 3mmx3mm QFN package. Key specifications include 28dBm linear output power, 40% peak linear efficiency, and 28dB linear gain.
| Operating Frequency Range | 1850 to 1910 MHz |
|---|---|
| Maximum Linear Output Power | 28 dBm |
| Linear Efficiency (Peak) | 40% |
| Linear Gain | 28 dB |
| ACPR @ 1.25MHz | -50 dBc |
| Package Type | QFN, 16-Pin, 3x3mm |
The device operates in the 1850MHz to 1910MHz band.
The RF3164 provides a maximum linear output of 28 dBm.
