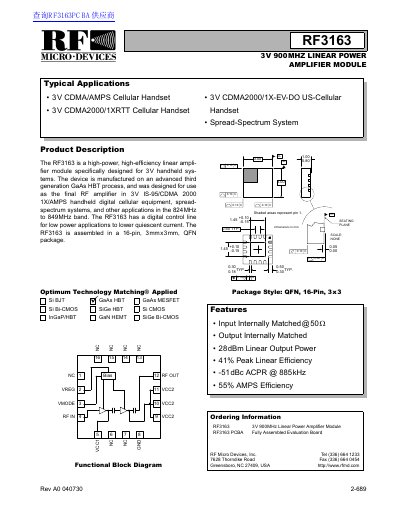

The RF3163 is a high-power, high-efficiency linear amplifier module specifically designed for 3V handheld systems. The device is manufactured on an advanced third generation GaAs HBT process, and was designed for use as the final RF amplifier in 3V IS-95/CDMA 2000 1X/AMPS handheld digital cellular equipment, spread-spectrum systems, and other applications in the 824MHz to 849MHz band. The RF3163 has a digital control line for low power applications to lower quiescent current. The RF3163 is assembled in a 16-pin, 3mmx3mm, QFN package.
The RF3163 is a high-power, high-efficiency linear amplifier module specifically designed for 3V handheld systems. Manufactured on an advanced third generation GaAs HBT process, it is intended for use as the final RF amplifier in 3V IS-95/CDMA 2000 1X/AMPS handheld digital cellular equipment and spread-spectrum systems within the 824MHz to 849MHz band. The device features a digital control line to lower quiescent current for low power applications and is assembled in a 16-pin, 3mmx3mm, QFN package.
| Operating Frequency Range | 824 to 849 MHz |
|---|---|
| Maximum Linear Output Power (High Power Mode) | 28 dBm |
| Maximum Linear Output Power (Low Power Mode) | 18 dBm |
| Peak Linear Efficiency | 41% |
| ACPR @ 885kHz | -51 dBc |
| Package Type | 16-pin, 3mmx3mm, QFN |
| Operating Temperature | -30 to +110 °C |
| Supply Voltage (High Power Mode) | 3.2 to 4.2 V |
The device operates in the 824MHz to 849MHz band.
The maximum linear output power is 28 dBm.
Yes, it is designed for 3V AMPS cellular handsets with 55% efficiency.
The recommended finish is electroless nickel, immersion gold.
