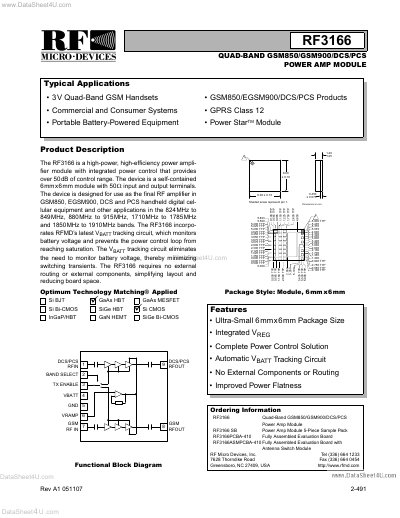

The RF3166 is a high-power, high-efficiency power ampli- fier module with integrated power control that provides over 50dB of control range. The device is a self-contained 6mmx6mm module with 50Ω input and output terminals. The device is designed for use as the final RF amplifier in GSM850, EGSM900, DCS and PCS handheld digital cel- lular equipment and other applications in the 824MHz to 849MHz, 880MHz to 915MHz, 1710MHz to 1785MHz and 1850MHz to 1910MHz bands.
The RF3166 is a high-power, high-efficiency power amplifier module designed for use as the final RF amplifier in GSM850, EGSM900, DCS, and PCS handheld digital cellular equipment. It operates across four frequency bands: 824MHz to 849MHz, 880MHz to 915MHz, 1710MHz to 1785MHz, and 1850MHz to 1910MHz.
| Package Size | 6mm x 6mm |
|---|---|
| Operating Frequency Range (GSM850) | 824 to 849 MHz |
| Maximum Output Power (GSM850) | 34.2 dBm |
| Total Efficiency (GSM850) | 45 to 52 % |
| Power Control Range | 50 to 55 dB |
| Operating Case Temperature | -20 to +85 C |
No, the module requires no external routing or external components.
The input impedance is 50 Ohms.
The output load impedance is 50 Ohms.
