RF3800 GaAs HBT Pre-Driver Amplifier is a pre-driver for 450MHz base station amplifiers, with 6W output power, high linearity, 45% power added efficiency, thermally enhanced packaging, broadband platform design approach.

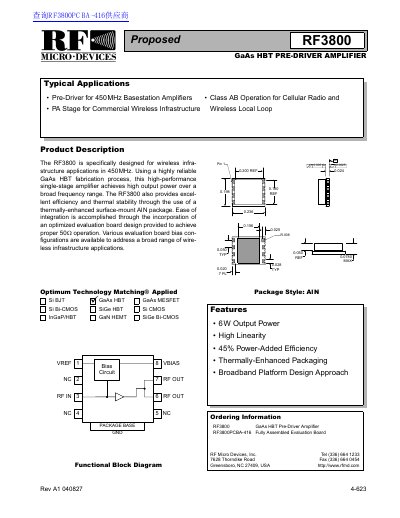

The document describes the RF3800PCBA-416, a fully assembled evaluation board designed for the RF3800 GaAs HBT Pre-Driver Amplifier. This board supports various bias configurations to address wireless infrastructure applications in the 450 MHz range.
Key features of the underlying RF3800 amplifier include 6W output power, high linearity, and a power-added efficiency of 45%. The device utilizes a thermally-enhanced surface-mount AIN package.
It is a fully assembled evaluation board for the RF3800 GaAs HBT pre-driver amplifier.
It is designed for use as a pre-driver for 450MHz basestation amplifiers and as a PA stage for commercial wireless infrastructure.
The amplifier provides 6W output power.
