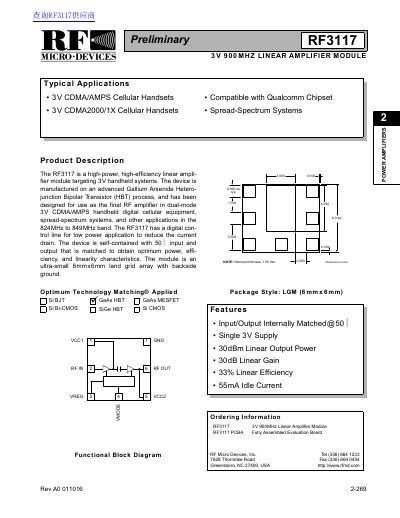

RF Micro Devices RF3117 900MHz Linear Amplifier Module Datasheet

The RF3117 is a 3V CDMA/AMPS cellular phone linear amplifier module that operates at 900MHz and has high power, high efficiency, and good linearity.

Brand: RF Micro Devices
Category: Other Electronics
Document type: Datasheet
Language: English
Pages: 6
File format: PDF
File size: 118 KB
Published: 06 August, 2012
Updated: 01 October, 2023
MD5 checksum: A285A4AF498F4880D9F17C3F6FCB9485
PDF: RF Micro Devices RF3117 900MHz Linear Amplifier Module Datasheet PDF

About this manual

The RF3117 is a high-power, high-efficiency linear amplifier module manufactured on an advanced Gallium Arsenide Heterojunction Bipolar Transistor (HBT) process. It targets 3V handheld systems and is designed for use as the final RF amplifier in dual-mode CDMA/AMPS equipment and spread-spectrum systems within the 824MHz to 849MHz band.

What's inside

Typical Applications
Product Description
Features
Ordering Information
Absolute Maximum Ratings
Typical Performance (High Power State)
Typical Performance (Low Power State)
Pin Function

Specifications

Frequency Range	824 to 849 MHz
Linear Gain (High Power)	30 dB
Maximum Linear Output Power	30 dBm
Linear Efficiency	33%
Idle Current (High Power)	55 mA
Supply Voltage Range	3.2 to 4.2 V

Frequently asked questions

What are the typical applications for this module?

It is designed for use as the final RF amplifier in dual-mode 3V CDMA/AMPS handheld digital cellular equipment and spread-spectrum systems.

Is this module compatible with Qualcomm chipsets?

Yes, the document lists it as compatible with Qualcomm Chipset.
