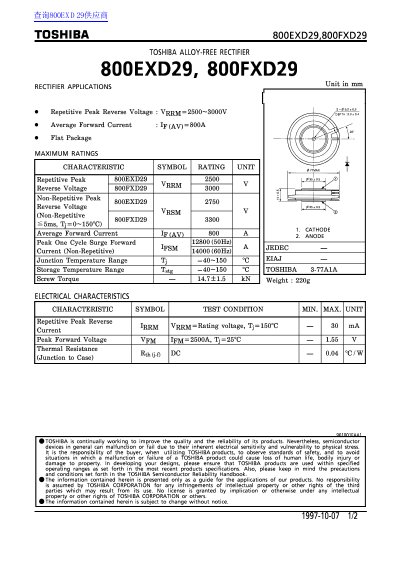

This document provides technical specifications for the TOSHIBA 800EXD29 and 800FXD29 alloy-free rectifier series. It lists maximum ratings including repetitive peak reverse voltage of up to 3000V and average forward current of 800A.
| Average Forward Current | 800 A |
|---|---|
| Junction Temperature Range | -40~150 °C |
| Thermal Resistance (Junction to Case) | 0.04 PCW |
The device supports an average forward current of 800 A.
The 800EXD29 model has a rating of 2500 V, while the 800FXD29 model is rated for 3000 V.
Both the junction and storage temperature ranges span from -40 to 150 °C.
