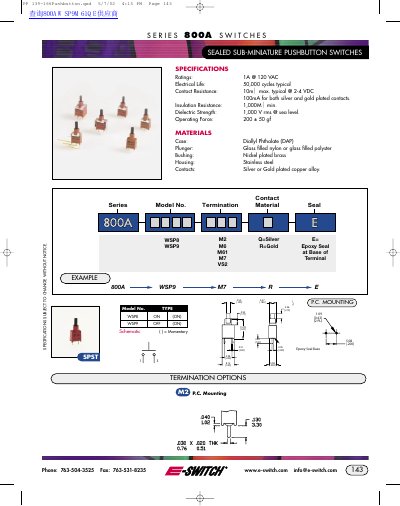

This document introduces the sealed sub-miniature pushbutton switches 800A series from e-switch. The product features a single pole single throw (SPST) configuration and an epoxy seal base. The switch has a compact size and high reliability, making it suitable for various applications.

Brand: EXTECH
Category: switch
Document type: Datasheet
Language: English
Pages: 2
File format: PDF
File size: 135 KB
Published: 02 August, 2012
Updated: 28 September, 2023
Model: 800A
MD5 checksum: 3CC5842E7E57091238DF09F4A97566E9
PDF: EXTECH Waterproof Thermometer Model 39240 Manual PDF

About this manual

This document provides technical specifications for the E-Switch Series 800A Sealed Sub-Miniature Pushbutton Switches. It covers electrical ratings, contact resistance, insulation resistance, and dielectric strength.

What's inside

Ratings
Electrical Life
Contact Resistance
Insulation Resistance
Dielectric Strength
Operating Force
Materials
Termination Options
Schematic
Specifications

Specifications

Ratings	1A @ 120 VAC
Electrical Life	50,000 cycles typical
Contact Resistance	10m Ωmax. typical @ 2-4 VDC 100mA
Insulation Resistance	1,000M Ωmin.
Dielectric Strength	1,000 V rms @ sea level
Operating Force	200 ± 50 gf

Frequently asked questions

What is the maximum electrical life of the Series 800A switch?

The switch has an electrical life of 50,000 cycles typical.

What is the maximum operating force for the switch?

The operating force is 200 ± 50 gf.

What is the maximum dielectric strength rating at sea level?

The dielectric strength is 1,000 V rms @ sea level.
