Extech 480846 8GHz RF EMF Strength Meter can measure mobile phone base station antenna radiation electromagnetic field strength, RF power, and wireless network Wi-Fi RF signal strength. It is suitable for RF electromagnetic radiation source positioning, microwave leakage test and other applications in the workplace or at home.

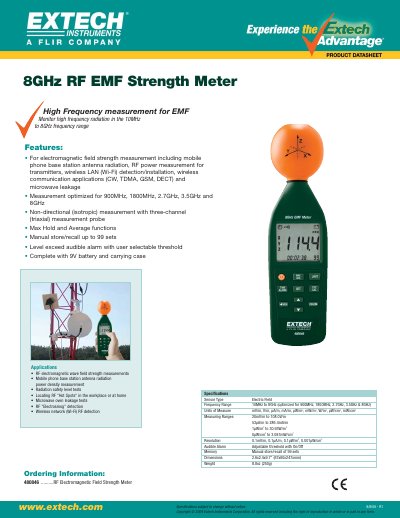

The document provides technical specifications for the Extech 480846 RF Electromagnetic Field Strength Meter. It details the sensor type, frequency range optimized for specific bands like 900MHz to 8GHz, and various units of measurement including mV/m and W/m2.
Key features include a non-directional three-channel triaxial probe, Max Hold and Average functions, manual store/recall capabilities for up to 99 sets, and an adjustable audible alarm. The meter is designed for applications such as mobile phone base station testing, microwave oven leakage detection, and Wi-Fi RF analysis.
| Sensor Type | Electric Field |
|---|---|
| Frequency Range | 10MHz to 8GHz |
| Optimized Frequencies | 900MHz, 1800MHz, 2.7GHz, 3.5GHz & 8GHz |
| Units of Measure | mV/m, V/m, μA/m, mA/m, μW/m2, mW/m2, W/m2, μW/cm2, mW/cm2 |
| Measuring Range (Voltage) | 20mV/m to 108.0V/m |
| Resolution | 0.1mV/m, 0.1μA/m, 0.1μW/m2, 0.001μW/cm2 |
| Memory Capacity | 99 sets |
The meter measures high frequency radiation in the 10MHz to 8GHz frequency range.
Yes, it features a level exceed audible alarm with a user selectable threshold.
