The document introduces three products: 380400 Resistance Decade Box, 380405 Capacitance Decade Box, and 380500 Inductance Decade Box. These products feature durable construction, separately grounding case, three binding posts, and multiple adjustable ranges. The 380400 Resistance Decade Box provides 1% resistance substitution from 1 to 11,111,110. The 380405 Capacitance Decade Box offers 5% capacitance substitution from 100pF to 11.111μF. The 380500 Inductance Decade Box provides 5% inductance substitution from 10μH to 111.1mH.

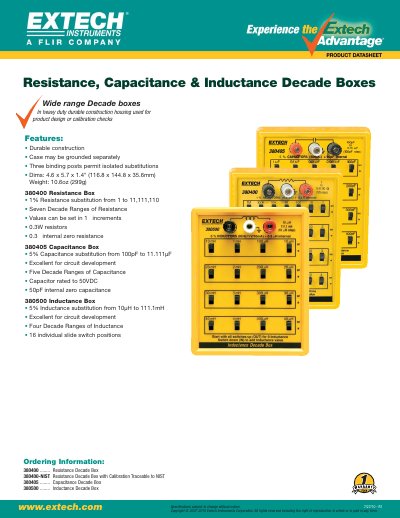

The document is a product datasheet for EXTECH's wide-range decade boxes, designed with durable construction for use in product design or calibration checks. The series includes models for resistance (380400), capacitance (380405), and inductance (380500).
| Dimensions | 4.6 x 5.7 x 1.4" (116.8 x 144.8 x 35.6mm) |
|---|---|
| Resistance Range | 1 to 11,111,110 ohms |
| Inductance Range | 10H to 111.1mH |
The units measure 4.6 x 5.7 x 1.4 inches (116.8 x 144.8 x 35.6mm) and weigh 10.6 oz (299g).
Model 380400 allows 1% resistance substitution from 1 to 11,111,110 ohms.
Model 380405 provides 5% capacitance substitution from 100pF to 11.111pF.
Model 380500 offers 5% inductance substitution from 10H to 111.1mH.
