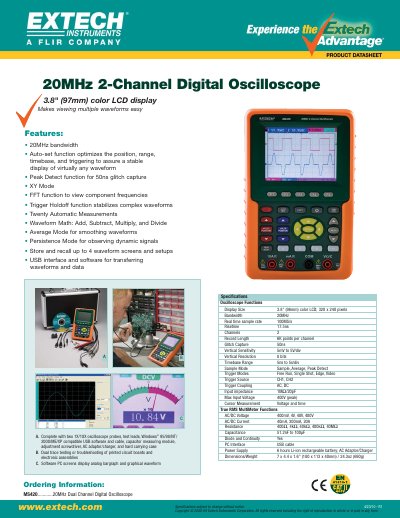

This document provides specifications and features of the MS420 20MHz dual channel digital oscilloscope produced by Extech Instruments Corporation. It features a 20MHz bandwidth, auto-set function, peak detect function, XY mode, FFT function, trigger holdoff function, twenty automatic measurements, waveform math functions, average mode, persistence mode, and the ability to store and recall up to 4 waveform screens and setups. It also includes a USB interface and software for waveform and data transfer.
The document describes the EXTECH MS420, a 20MHz bandwidth, 2-channel digital oscilloscope manufactured by FLIR. It features a 3.8-inch color LCD display and includes an auto-set function to optimize waveform viewing.
Key capabilities include peak detect for glitch capture, FFT analysis, and twenty automatic measurements. The device also functions as a true RMS multimeter and supports USB interfaces with compatible Windows software.
| Bandwidth | 20MHz |
|---|---|
| Channels | 2 |
| Display Size | 3.8" (96mm) color LCD; 320 x 240 pixels |
| Real time sample rate | 100MS/s |
| Glitch Capture | 50ns |
| Vertical Resolution | 8 bits |
| Max Input Voltage | 400V (peak) |
The device has a bandwidth of 20MHz.
This oscilloscope features two channels.
