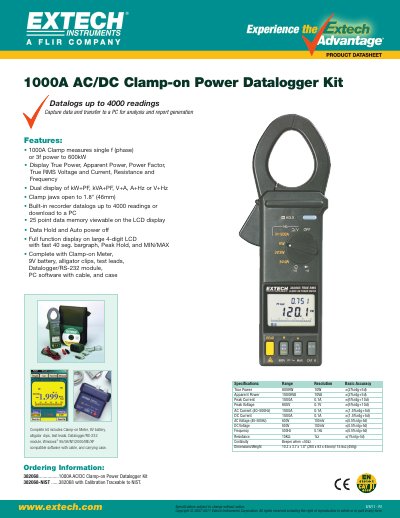

This document describes the features and characteristics of Extech Instruments Corporation's 1000A AC/DC Clamp-on Power Datalogger Kit, including measurement range, display functions, data logging, and data transfer.
The EXTECH 1000A is an AC/DC clamp-on power datalogger kit designed to measure single phase or three-phase power up to 600kW. The device features a large 4-digit LCD display with fast bargraphs and supports dual displays for various parameters such as kW+PF, kVA+PF, V+A, A+Hz, or V+Hz.
The kit includes a clamp-on meter capable of measuring True Power, Apparent Power, Power Factor, True RMS Voltage and Current, Resistance, and Frequency. It features a built-in recorder that can datalog up to 4000 readings or download data directly to a PC for analysis and report generation.
| True Power Range | 600kW |
|---|---|
| Apparent Power Range | 1000KVA |
| Peak Current Range | 1000A |
| AC Voltage Range | 600V |
| DC Voltage Range | 600V |
| Frequency Range | 500HZ |
| Resistance Range | 40K2 |
| Data Memory Capacity | 4000 readings |
| Jaw Opening Width | 1.8" (46mm) |
The built-in recorder can datalog up to 4000 readings.
The clamp jaws open to a width of 1.8 inches (46mm).
