Extech PQ3350-3 3000A 3-Phase Power Harmonics Analyzer is a power measurement and analysis instrument for single and 3-phase systems with a maximum datalogging capacity of 52,428 single phase readings or 17,476 3-phase readings.

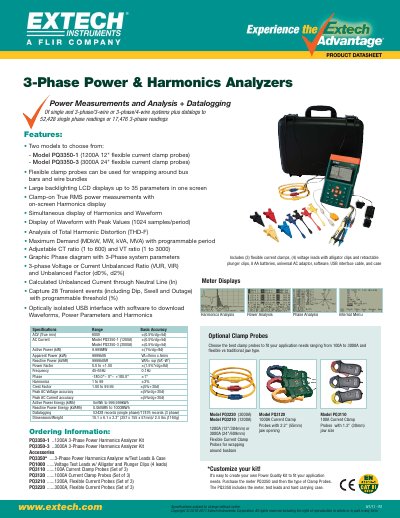

The document is a product datasheet for the EXTECH PQ3350 series of 3-Phase Power & Harmonics Analyzers. It highlights key features such as True RMS power measurements, on-screen harmonic displays, waveform analysis, and the ability to capture transient events. The analyzer supports single and 3-phase/3-wire or 3-phase/4-wire systems.
| AC Voltage Range | 600V |
|---|---|
| AC Current Range (Model PQ3350-1) | 1200A |
| AC Current Range (Model PQ3350-3) | 3000A |
| Active Power Range | 9.999MW |
| Apparent Power Range | 9999KVA |
| Reactive Power Range | 999KVAR |
| Frequency Range | 45-65Hz |
| Harmonics Range | 1 to 99 |
| Datalogging Capacity (Single Phase) | 52,428 records |
| Datalogging Capacity (3 Phase) | 17,476 records |
The PQ3350-1 model is rated for 1200A.
The analyzer stores up to 52,428 single-phase readings or 17,476 3-phase readings.
