This three-phase 1000A power analyzer/data recorder has a large backlit LCD display that simultaneously displays 10 parameters (kW, kVAR, kVA, PF, as well as the voltage and current of the three phases). It is equipped with a clamp-on ammeter and real RMS power measurement, and has harmonic analysis software. It can display real power (kW), apparent power (kVA), reactive power (kVAR) and power factor (PF). Current measurement range is 1000A and voltage measurement range is 600V. It can automatically record 20,000 sets of measurement data and manually record 99 sets of data. The data recorder has programmable start/stop times. The product also includes a PC interface and software that is compatible with Windows® 95/98/NT/2000/ME/XP operating systems for single-phase and three-phase voltage/current measurement, with waveform display and harmonic analysis functions. The product can also measure phase sequence. The product comes with 4 current clamps, 4 alligator clip cables, 8 AA batteries, software, PC interface cable, and a carrying case. The product is suitable for AC power evaluation, harmonic analysis, generator/motor installation, and power audits.

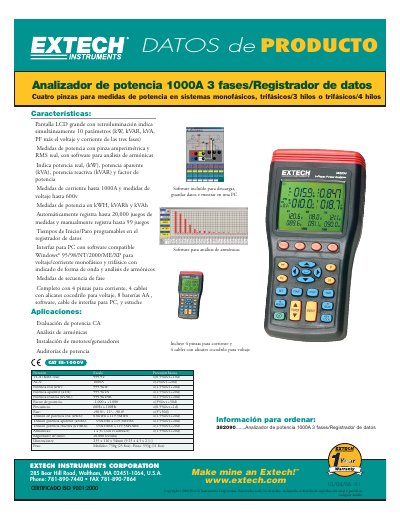

This document describes the Extech Power Analyzer 1000A / Data Logger, designed for measuring power in three-phase systems (3-wire or 4-wire). The device features a large LCD screen capable of simultaneously displaying up to ten parameters, including real power (kW), apparent power (kVA), reactive power (kVAR), and power factor. This manual is written in Spanish.
| Current Measurement Range | 1000A |
|---|---|
| Real Power Accuracy (kW) | ±1.3% + 20d |
| Apparent Power Accuracy (kVA) | ±1.3% + 20d |
| Reactive Power Accuracy (kVAR) | ±1.5% + 20d |
| Frequency Range | 0Hz to 100Hz |
The device measures currents up to 1000A.
