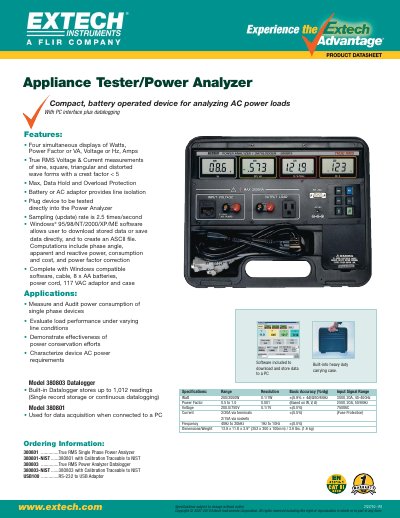

EXTECH 380801/380803 Appliance Tester/Power Analyzer Datasheet

380801 is a True RMS Single Phase Power Analyzer with PC interface and datalogging from Extech.

Brand: EXTECH
Category: Other Electronics
Document type: Datasheet
Language: English
Pages: 1
File format: PDF
File size: 225 KB
Published: 01 August, 2012
Updated: 30 September, 2023
MD5 checksum: F94C68DA2A9609946C9D0254849FB136
PDF: EXTECH 380801/380803 Appliance Tester/Power Analyzer Datasheet PDF

About this manual

The EXTECH Appliance Tester/Power Analyzer is a compact, battery-operated device designed for analyzing AC power loads. It features four simultaneous displays for Watts, Power Factor, Voltage, Hz, Amps, and supports True RMS measurements for various waveforms. The unit includes a built-in datalogger (Model 380803) capable of storing up to 1,012 readings and connects to a PC via USB or RS-232 for data download and analysis.

What's inside

Features
Applications
Specifications
Ordering Information
Dimensions and Weight

Specifications

Max VA Rating	2000VA
Sampling Rate	2.5 times/second
Watt Range	200/2000W
Weight	3.6 lbs. (1.6 kg)
Datalogger Storage	up to 1,012 readings

Frequently asked questions

What is the maximum power rating of the EXTECH 380801/380803?

The device has a maximum rating of 2000VA.

What is the physical weight of the unit?

The unit weighs 3.6 lbs (1.6 kg).
