This document describes the features and characteristics of the 382075 3-Phase Power Analyzer manufactured by Extech Instruments Corporation. The instrument features a 4-digit 9999 count dual display LCD screen and can measure true power, reactive power, and apparent power with a wide range of up to 1200kW. It is suitable for 3-phase balanced or unbalanced loads. It also has the capability to store and recall the last four measurements, as well as various advanced functions such as power factor, phase angle, and min/max. The instrument comes complete with test leads, carrying case, and a 9V battery.

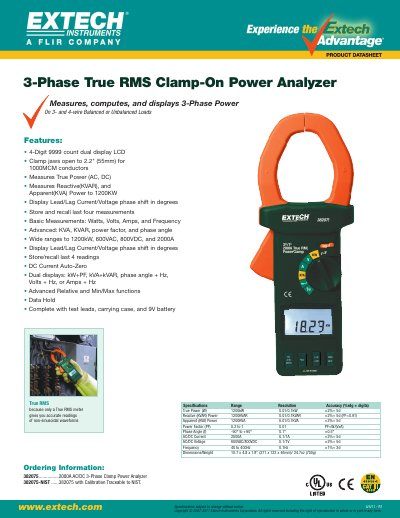

This document is a product datasheet for the EXTECH 3-Phase True RMS Clamp-On Power Analyzer (Model 382075). The device is designed to measure, compute, and display power parameters on both balanced and unbalanced 3- and 4-wire loads. It features a dual-display LCD capable of showing basic measurements like Watts, Volts, Amps, and Frequency, as well as advanced calculations such as KVA, KVAR, Power Factor, and phase angles.
| Power Range (Watts) | 1200kW |
|---|---|
| Reactive Power Range | 1200KVAR |
| Apparent Power Range | 1200KVA |
| AC/DC Current Range | 2000A |
| AC/DC Voltage Range | 600VAC/800VDC |
| Frequency Range | 40 to 400Hz |
| Dimensions | 271 x 122 x 46mm |
| Weight | 700g |
The device measures AC/DC current up to a range of 2000A.
The analyzer measures all three types of power up to a range of 1200kW.
The clamp jaws open to a width of 2.2" (655mm).
